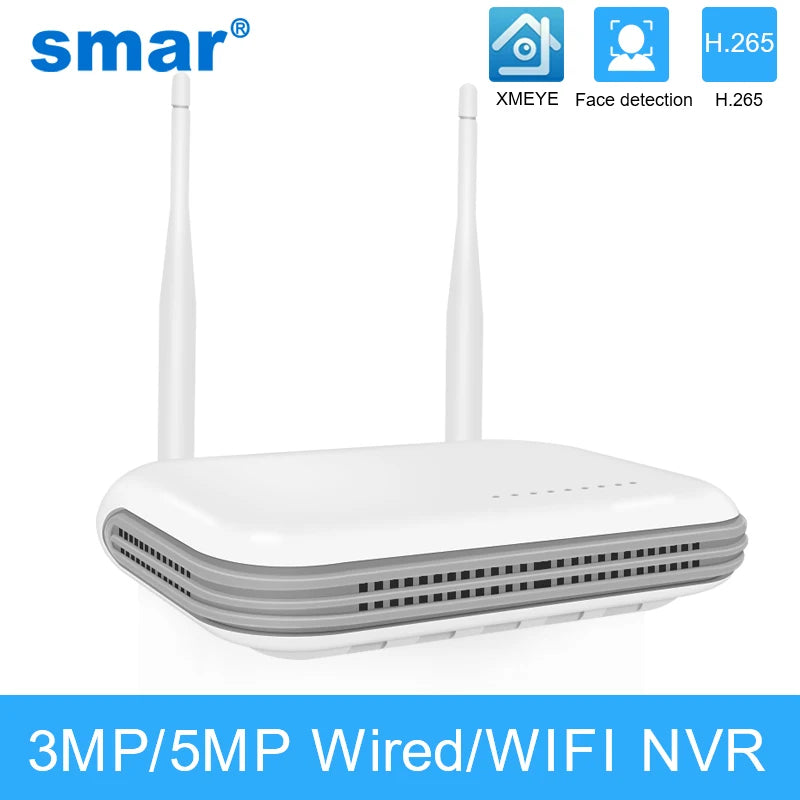

Smar H.265 Wireless NVR 8CH 3MP 5MP WIFI NVR Network Video Recorder Face Detection Email Alart For IP Camera CCTV XMEYE ONVIF
Smar H.265 Wireless NVR 8CH 3MP 5MP WIFI NVR Network Video Recorder Face Detection Email Alart For IP Camera CCTV XMEYE ONVIF
Couldn't load pickup availability
What type of camera can work with this Wifi NVR?
1: Wired IP camera
(1) Our Brand: All Supported.
(2) Other Brand: Support NETIP and ONVIF Protocol (2.0 or 2.0 Version above)
2: Wifi Camera
(1) Our Brand: All Supported.
(2) Other Brand: Support ICSee Wifi Camera (Not all of the ICSee Wifi Camera Device Version)
Note: If you are using other Brand of ICSee Wifi Camera,Please confirm the ICSee Wifi Camera Device Version with us before placing an order.
3: Other APP Wifi Camera
We are not sure if it can be connected for use, Please purchase with caution;
If your Wifi Camera supports the ONVIF Protocol, Please use an RJ45 Cable connection as it may work.
How to find the device version of ICSee Wifi Camera? Please refer to the following picture:
Note:
Our Old 8CH mini NVR has upgrade Newest 8CH Wireless NVR(Compatibility Wired NVR)The New 8CH Wireless NVR max support 5MP Wifi IP Camera or max support 8MP 4K IP Camera
Feature:
1. This Mini NVR suppor 3MP/5MP Wireless IP Camera
2. Support human form detection and face detection;
3. Support h.265ai / h.265 + (compatible with h.265 / H.264) video compression technology;
4. Support onvif protocol and access to third-party backend / platform;
5. Support Wifi / Wired IP Camera, built-in Micro SD card slot,Support SSD port, maximum support 128GB Micro SD card and 8TB 2.5“HDD (optional at the time of purchase)
6. Supports 7x24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
7. Support web side, CMS, central management platform software XMEYE;
8. Supprt Cloud technology,Realize network penetration, front and rear end docking, and push alarm information to mobile phones
Model |
8CH |
|
System |
Processor |
Mstar |
System |
Embedded Linux |
|
Video |
Video input |
8ch3M/4ch5M |
Playback |
8ch3M/4ch5M |
|
Decode |
H.265AI/H.265+(compatible H.265/H.264) |
|
Audio |
Voice broadcast |
Configure the alert tone |
Management |
Inquire mode |
App |
Storage mode |
2.5-inch hard disk storage. SD Storage, Cloud Storage |
|
Wifi |
Bands |
2.4GHz |
Standard |
IEEE802.11b/g/n |
|
Interface |
HDMI output |
1*HDMI (MAX:1080P) |
SD |
1*SD |
|
Ethernet port |
1*RJ45 1*10/100/1000Mbps Ethernet port |
|
USB Port |
1*USB2.0 ports |
|
General |
Temperature |
0 ℃ - + 55 ℃ |
Humidity |
10% -90% RH |
|
Power supply |
DC12V |
|
Consumption |
<5W |
|
Weight |
Around 120g |
|
Dimension |
171mm(L)* 136mm(W)* 37mm(H) |
Packing List
1* 8CH WIFI NVR
1* Power Adapter
1* USB Mouse
If you want the NVR with Hard Disk,Please click the follow link:

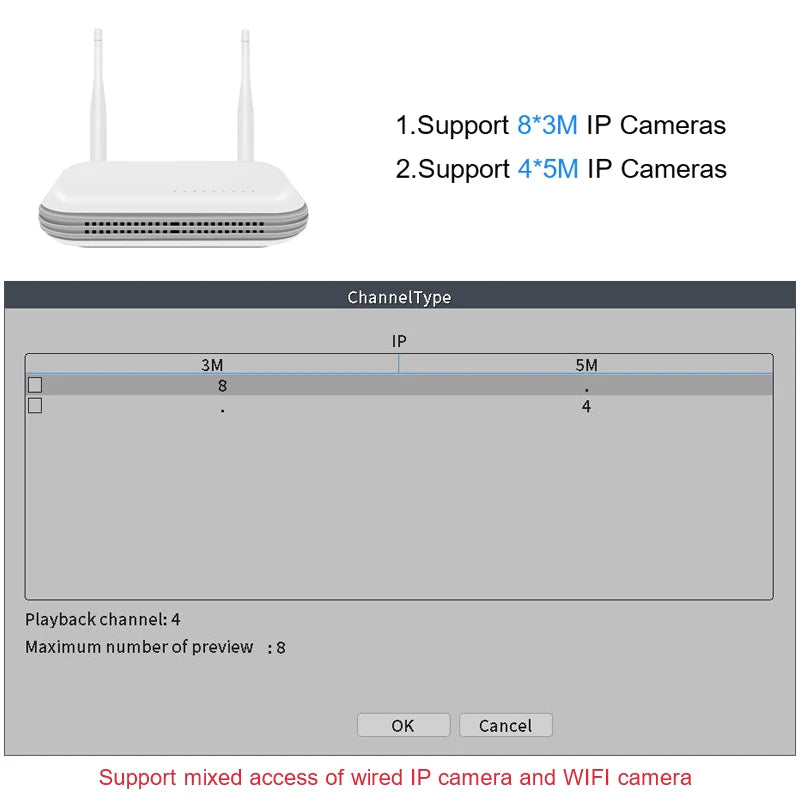

ChannelType of 8CH
1. Max support 8*3MP IP Camera,or 4*5MP IP Camera
2.Support mixed access of wired IP Camera and WIFI Camera;
3.Playback 4CH 5MP/ 8CH 3MP
4.If Your camera is Wird 4K camera, it will support.
(Note:(Your camera must support XM human detection, or will not work)

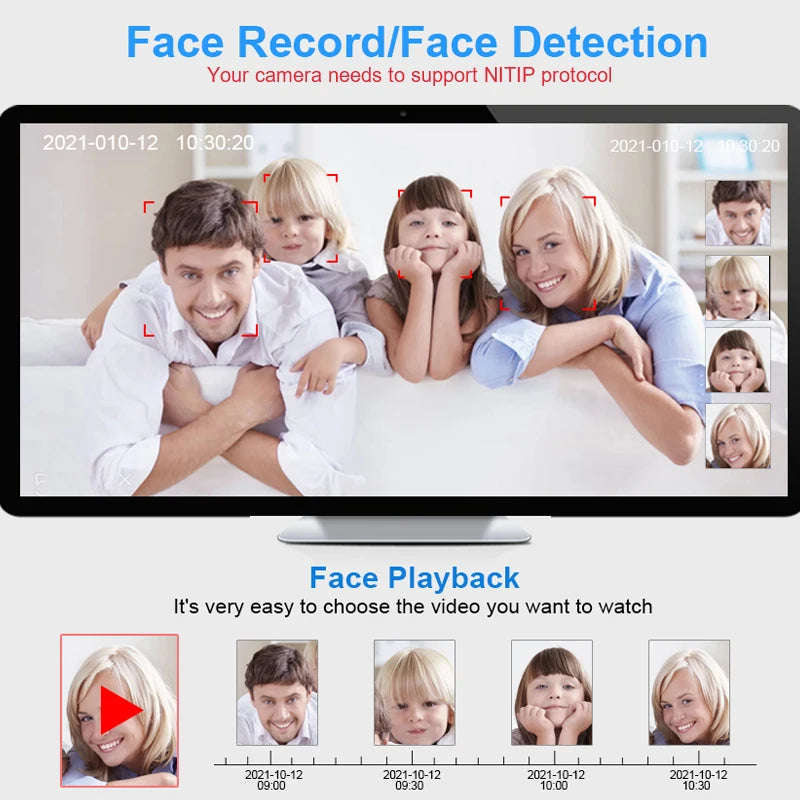

Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera
(Note:(Your camera must support XM human detection, or will not work)
Alert area

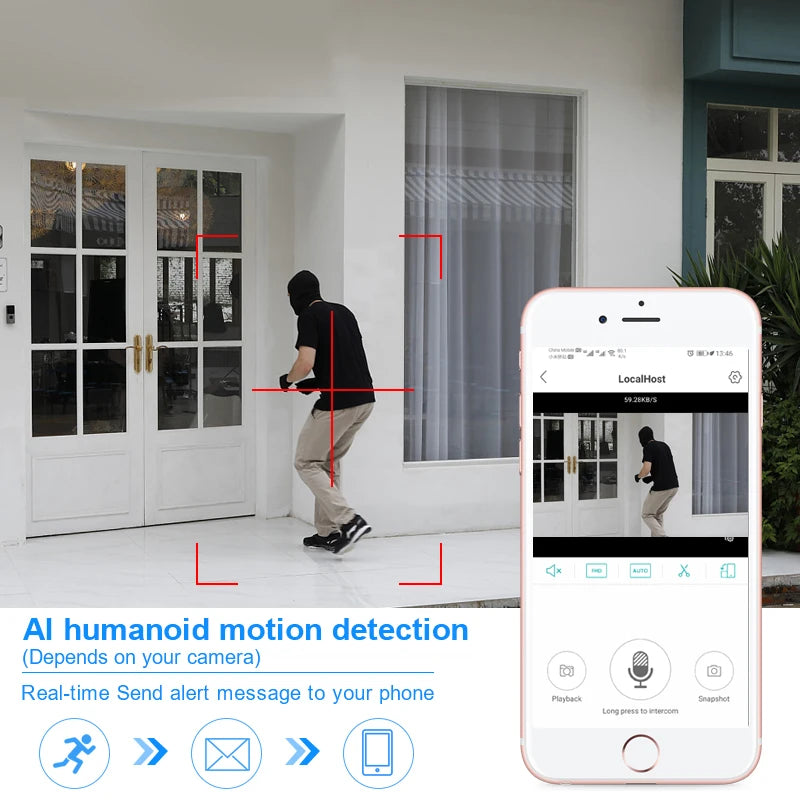

A Mumanoid Motion Detection & Email Alert/Record
When motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
(Note:AI Humanoid Motion Detection: Depends on your camera)
(Note:(Your camera must support XM human detection, or will not work)
Multi Languages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...Total 28 languages
Real Two Way Audio
Built-in microphone and speaker / Customized new speakers with loud volume .
You could talk to anyone nears the camera ( Warn someone to leave your house )
One click selection Wired or Wireless configuration, the operation is very easy and convenient; (please check the screenshot as below)
Support ONVIF
you can connect any brand's Onvif IP Cameras to our this NVR;
Reminder:
We recommend that when you buy NVR, you also buy IP camera of smar brand; because they have a very perfect NETIP protocol connection; so the performance between them can be more prominent! If you have purchased other brands of IP Camera,The condition for them to work together is to connect through the ONVIF protocol,We detected some abnormalities in them; for example: motion detection does not work properly; or audio and Video is out of sync, etc...
So please note that before you buying!
Easy access via multi-platform
Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time... any where...

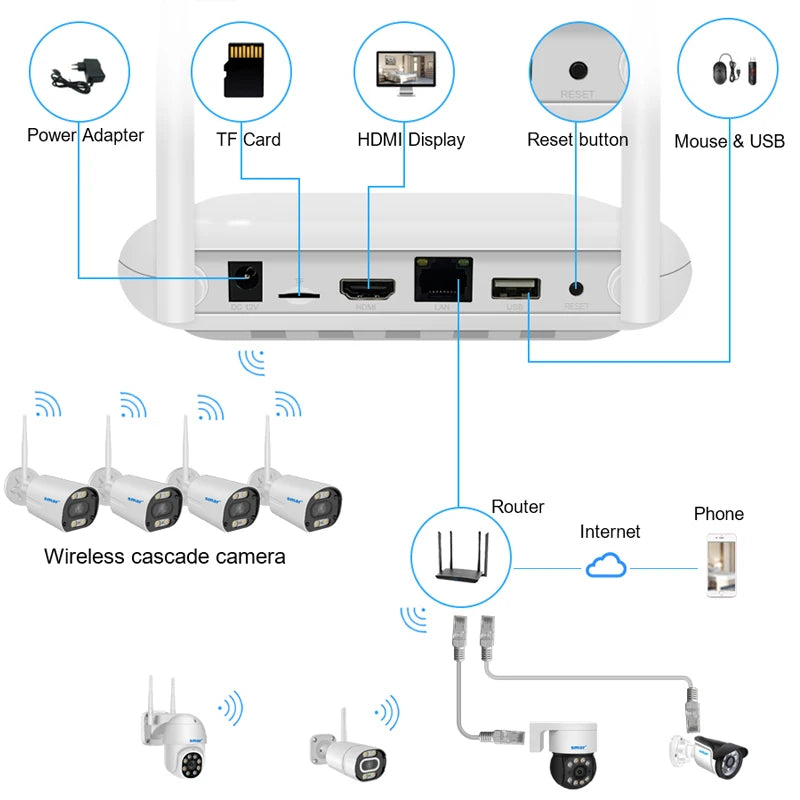

Easy connection
NVR Size and Multi angle display:

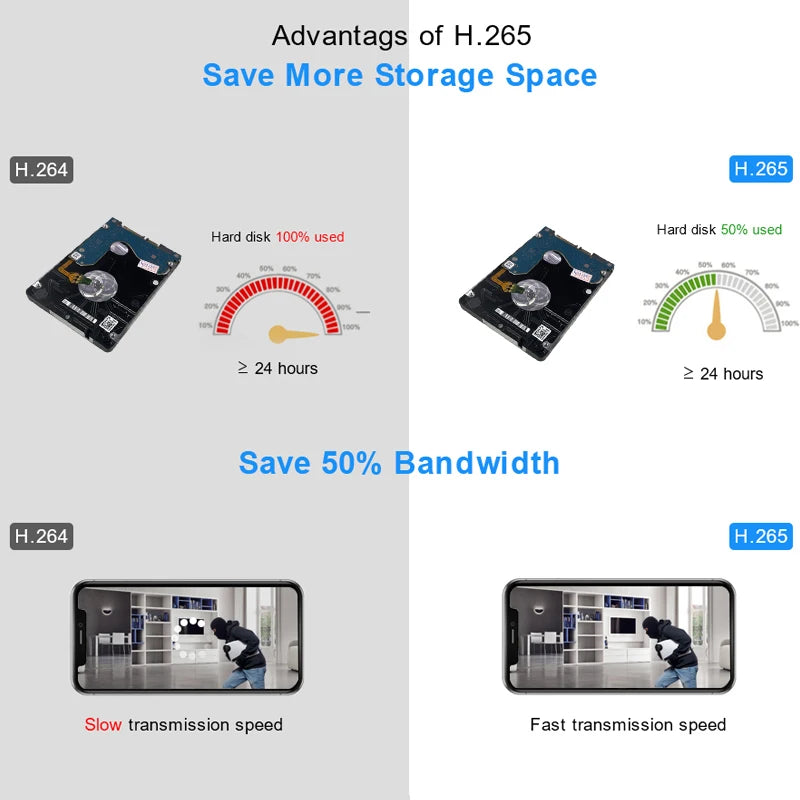

Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
Support 2.5" SSD Interface
Note: Please install 7mm Thickness 2.5inch Hard Disk
How to remote view through Mobile phone?
2. Open the software register an account and login.
3. Add devices( Connect the camera to the NVR first)
4. Add successfully, enjoy live video
How to manage the cameras through PC client?
1. Please used your mobile phone to scan the QR code as below, and then click to download；
2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin
3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;
4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.
We operate warehouses in Europe, Russia, Brazil, and Mexico, allowing us to offer you fast and tax-free shipping to these regions. If your order is fulfilled from our China warehouse, we will arrange an upgraded shipping method based on stock availability in the warehouse closest to your delivery destination.
1.Shipment from China might come with additional Custom Fees, VAT, Taxes & Remote Area Fees, please to learn about your country's custom policies, Smar is not responsible for those charges.
2. If a package is held by destination country customs, the buyer is responsible for clearance. Should you encounter any issues, please contact us—we will assist you with the customs clearance process.
All products come with a one-year warranty from the date of delivery. If a manufacturing defect occurs within this period, we will repair or replace it for you.
Please note the warranty does not cover damage from accidents, improper use, or natural disasters.
Here’s how it works:
- 1st month: Free replacement, no questions asked.
- Months 2–6: We cover repair/replacement costs; you pay shipping.
- Months 7–12: Repair or replacement at 50% of product price, plus shipping.
We truly value your satisfaction. If you’re pleased with your purchase, we’d appreciate your positive feedback and a 5-star rating.
If you have any concerns, please reach out to us first—we’re here to help and resolve any issues quickly.
How to confirm which camera support this Wifi NVR ?
1: Wired IP camera
Support Netip and ONF protocol IP Cameras.
For Wired IP camera only recommend use RJ45 cable contact NVR to Router.
2: iCSEE Wifi Camera
iCSEE camera have orgional camera and OEM camera difference, You need confirm which kind it is first.
For orgional camera, only use the "code for Wireless" to search camera, all will be automatic contact.
For OEM Cameras, You need press the "code for wireless"first, after search finished, press "wired configuration"to search the camera address again, then add the camera by Hand.
Defult will be ONF protocol, you need edit it to NETIP and "34567"port.
3: Other APP name Wifi Camera
This Kind of camera must contact seller ask first, Make sure they can work with eachother then buy it.
